High Power 12v Sealed Lead Acid Battery Charger 240Vac 60Hz

Name: High Power 12v Sealed Lead Acid Battery Charger 240Vac 60Hz
Brand: LA-FAST
Price: 1 USD

China High Power 12v Sealed Lead Acid Battery Charger 240Vac 60Hz wholesale

Brand Name : LA-FAST

Model Number : 36V

Certification : CE

Place of Origin : CHINA

MOQ : 100 pcs

Price : NEGOTIABLE

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 100000 PCS PER MONTH

Delivery Time : WITH 10 DAYS

Packaging Details : CARTON BOX

Use : Standard Battery,electric vehicle,Electric patrol car,sweeping car,NiMh battery

Output : 8A,14.4V 6A,5V 2.1A,13.8-14.5V 1A/2A,60V8A

Input : AC 100-240V 50/60Hz,AC100~240v,100 240v ac 50/60hz,100-240vac

Input voltage : 110V-240V,110-220 VAC,220VAC(190-265VAC),ac 220V

Output voltage : 12V/24V/36V/48V/60V/144v,Customized

Material : Aluminum Alloy,plastic,ABS+PC Fireproof Material,Aluminum Shell

Socket standard : EU/AU/UK/US

Usage : EBIKE,Scooter,Power Tool,Electric toy cars,electric vehicle

Net weight : 13kg,4.5Kg,1.2kg,2.06 kg

Weight : 2.6kg,120g,0.34KG,23.7kg

Power : 900W,360W,9w,5000W

Contact Now

12v sealed lead acid battery charger high power lead acid battery charger

Product Description

AC input voltage	100-240Vac 50~60Hz	Material	Aluminum
DC output voltage & curren t	12V 2A	Method	CC/CV
Specification	150 * 85 * 60 mm	N.W.	1 KG
Operating temperature	-10℃~+50℃	Storage Temperature	40℃~+80℃
Warranty	3 years	Certificates	CE/ROHS/FCC/SAA
The indicator of LED colors: "RED" means charging, "GREEN" means charging is complete.



Compatible with most brands of electric vehicles
Applicable to most brands of electric vehicles in the market
Zero voltage output
Reverse polarity protection
Dual timing

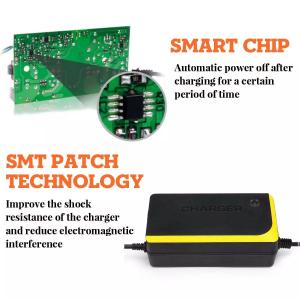

SMD process
ABS flame retardant box
Good quality Charger Cable
MM Thicker Charger Cable
Safe Silent
Reject inferior
Overload protection
Short-circuit protection
Overvoltage protection
Overcurrent protection


Description

Microprocessor Control (CPU).
3-STAGE AUTOMATIC CHARGING:
This is a fully automatic battery charger with 3 charge stages.
Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
3-stage chargers are suitable for most lead acid battery:Calcium, Gel and AGM, Wet batteries. They may also help restore drained and sulphated batteries.

1:Input Characteristics:

Input Voltage: 100-240V AC
Input Frequency: 50Hz or 60Hz and single phase.
Inrush Current (cold start):30A Max.@110Vac/60HZ/ 60A Max.@230Vac/50HZ
Efficiency: ≥85.0% 230Vac/50Hz(Typical full load)

2:Output Characteristics:
Constant Charging Voltage: 14.7V Float charge 13.8V
C:Charging Mode Intelligent 12V 5-6A lead acid battery charger

3 Stages, CC, CV, Trickle

4:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The liftpo4 battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The wheelchair battery chargerconform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

5:Protection for battery charger
Over Voltage Protection:The power supply will be auto recovered when faults remove
Over Current Protection: Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection :Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

Our Services

Our Service

1. OEM Manufacturing welcome: Product, Package,logo and brand.
2. Sample order :Free sampls but you need pay for freight.
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
